Shock absorber Damper Series

See Catalogue
DAMPER20
  • ¾'' BSP
  • P7-P18-P30
  • 6 mm
  • 8 bar
  • See Catalogue
See Catalogue
DAMPER25
  • 1'' BSP
  • P50-P65-P100
  • 8 mm
  • 8 bar
  • See Catalogue
See Catalogue
DAMPER40
  • 1 ½'' BSP
  • P160-P250
  • 10 mm
  • 8 bar
  • See Catalogue
See Catalogue
DAMPER50
  • 2'' BSP
  • P500-P700-P1000
  • 12 mm
  • 8 bar
  • See Catalogue

Main Features

Construction’s materials: Polypropylene, PVDF, Aluminium, AISI 316. Automatically, not need pre-loading. Unlimited dry running. Various installations and configurations, ATEX certifications for Zone 1 and 2 in all versions, Easy to mantain.

layout styles
layout styles

Installation

Follow the directions of the arrows for the correct installation.

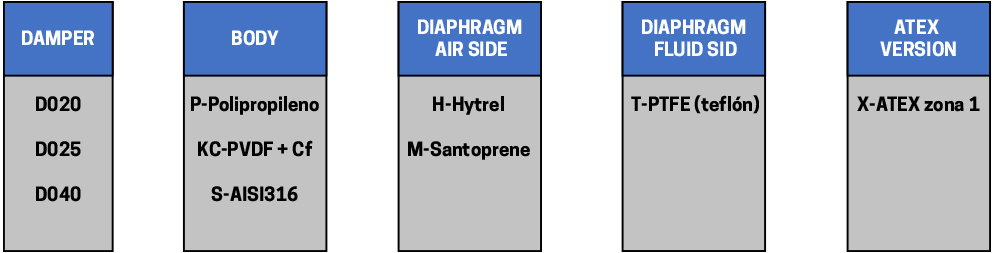

Dampener´s identification

layout styles

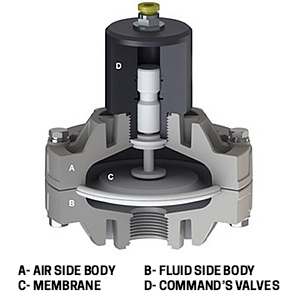

Function

Pulsating fluid passes through the dampener which drives the control valve, which moves the diaphragm aligning the flow out.
